TENCAN / Equipment series

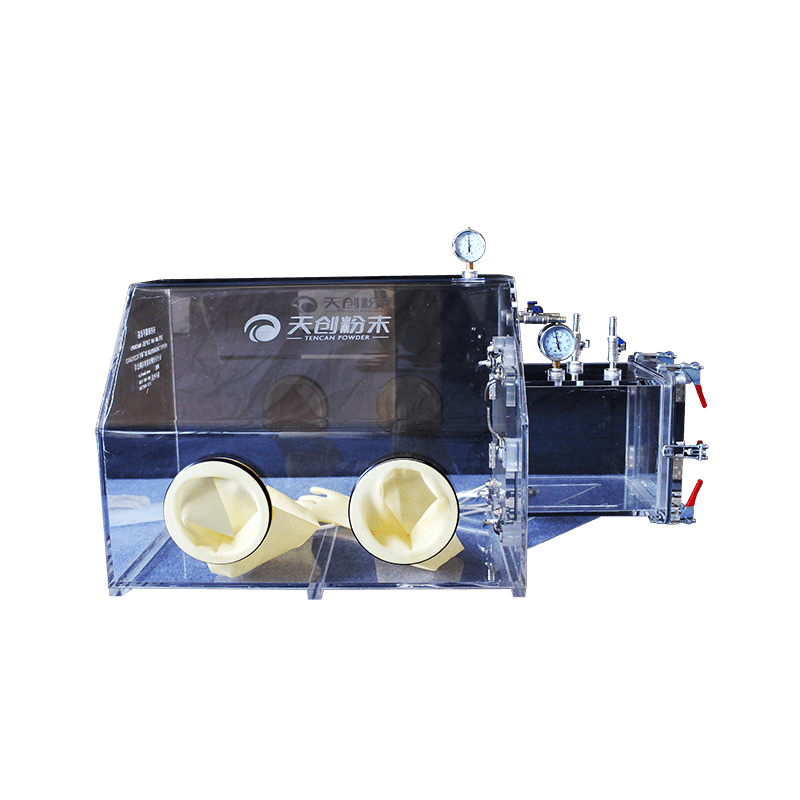

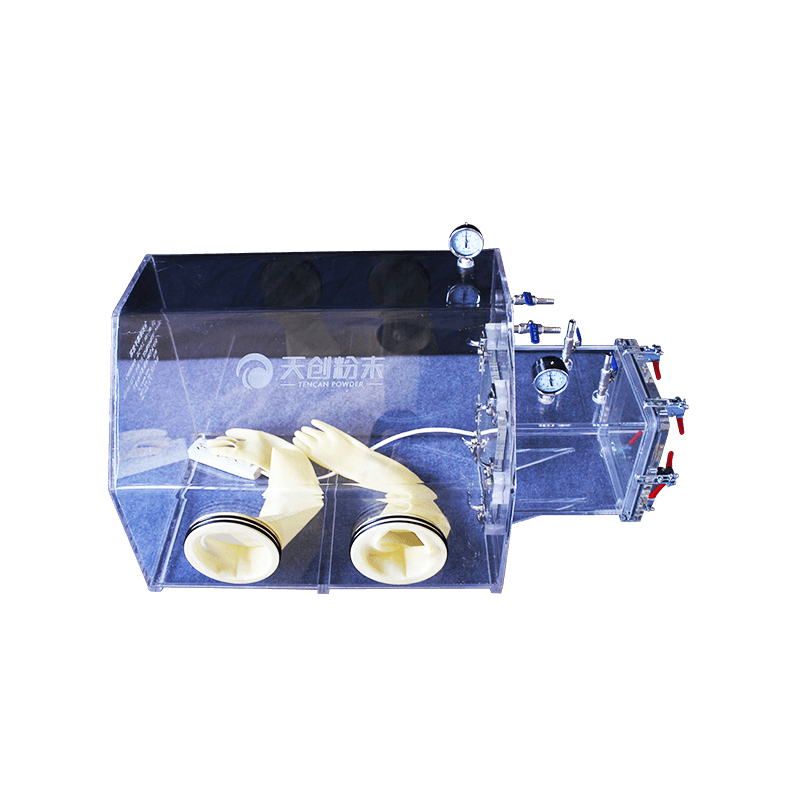

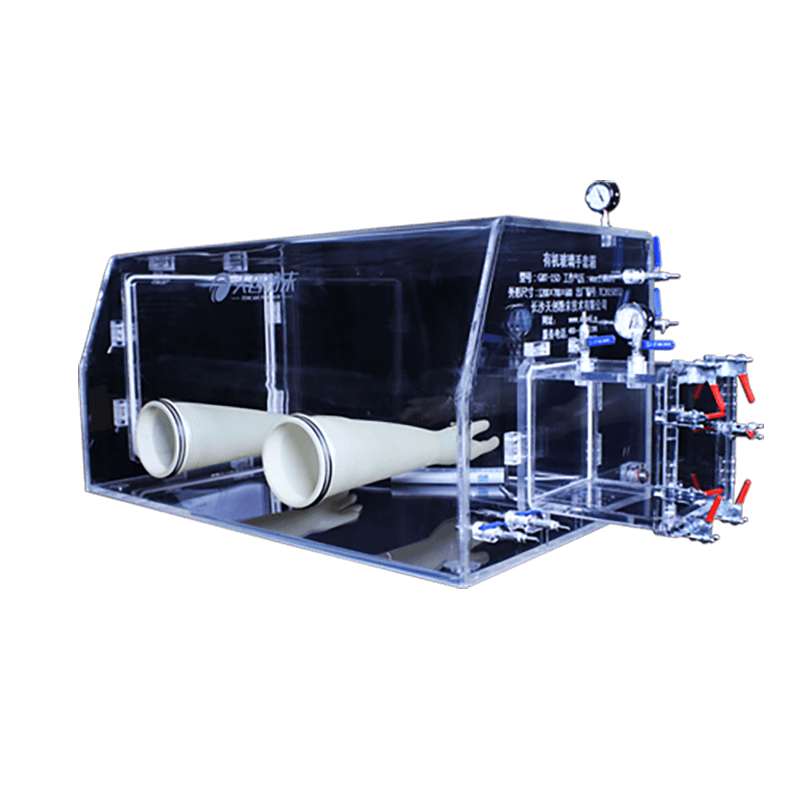

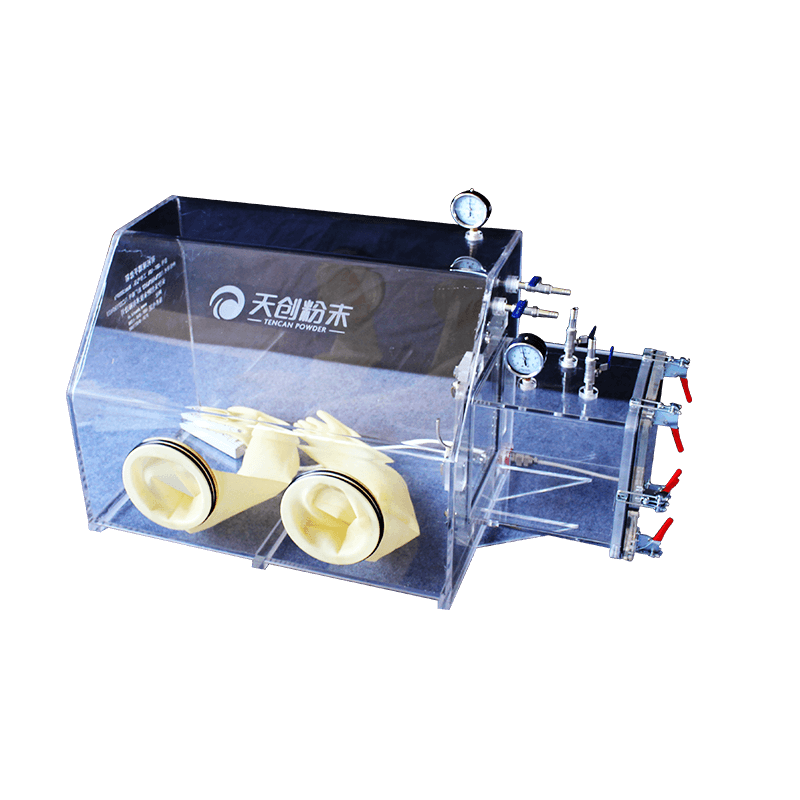

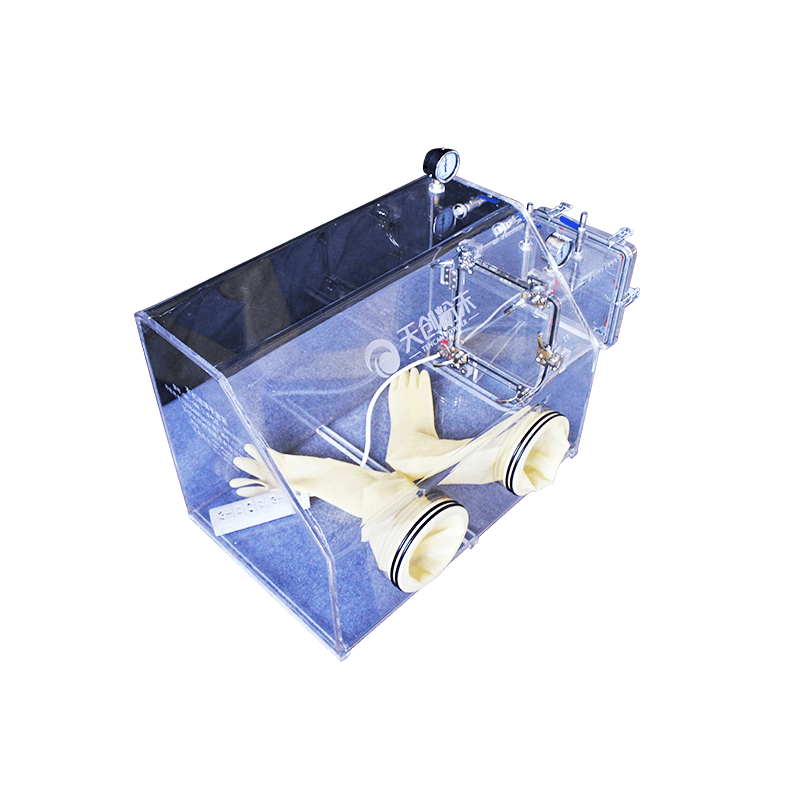

Acrylic glove box
Acrylic vacuum glove box enables safe sample handling and operation in an inert, oxygen-free, moisture-free environment for precise scientific experiments.
| Material | Organic glass / acrylic |
| Leak rate | 2 stages |
| Chamber wall thickness | 10~35mm |
These specifications describe the series. Confirm the selected model, power supply and configuration before ordering.
Request a quotationTechnical parameters
Plexiglas glove box model
Glove box number description| Product model | Box size (mm) | Material | Cabinet thickness (mm) | Transition room dimensions | Remark |
|---|---|---|---|---|---|
| GBT-10A | 700×450×500 |
Plexiglass or acrylic |
10 | none | Isolated and dust-proof, no vacuuming |
| GBT-15A | 15 | 240×240×240 | Micro vacuum can be equipped with water and oxygen removal purification system | ||
| GBT-30A | 30 | Vacuum to -0.1MPA, replace oxygen and water | |||
| GBT-10B | 1000×500×500 |
Plexiglass or acrylic |
10 | none | Isolated and dust-proof, no vacuuming |
| GBT-15B | 15 | 240×240×240 | Micro vacuum can be equipped with water and oxygen removal purification system | ||
| GBT-30B | 30 | Vacuum to -0.1MPA, replace oxygen and water | |||
| GBT-10C | 1200×600×600 |
Plexiglass or acrylic |
10 | none | Isolated and dust-proof, no vacuuming |
| GBT-15C | 15 | 240×240×240 | Micro vacuum can be equipped with water and oxygen removal purification system | ||
| GBT-30C | 35 | Vacuum to -0.1MPA, replace oxygen and water | |||
| GBT-10D | 1200×800×700 |
Plexiglass or acrylic |
10 | none | Isolated and dust-proof, no vacuuming |
| GBT-15D | 15 | 240×240×240 | Micro vacuum can be equipped with water and oxygen removal purification system | ||
| GBT-30D | 35 | Vacuum to -0.1MPA, replace oxygen and water |
Special customization
During scientific experiments, some substances are easily oxidized and deliquesced in the atmosphere, which makes the chemical reaction of the test substance and the pre-processing of the sample very difficult, affecting the test process and test results. The plexiglass vacuum glove box (also known as the vacuum inert gas operating box) effectively solves these problems. This device allows the test samples to be safely put in and taken out, and can be operated, reacted and tested freely in an oxygen-free and water-free state, ensuring the normal conduct of scientific experiments.
Before operation, review the selected model’s instructions and the material requirements.
